- LF Driver Size
- 127 mm (5")
- HF Driver Size
- 25 mm (1")
- HF Driver Type
- Soft dome
- Crossover
- 1725Hz 4th order acoustic Linkwitz-Riley
- Power Configuration
- Bi-amplified
- HF Driver Power Amp
- 41 W Class D
- LF Driver Power Amp
- 41 W Class D
- Frequency Response
- 49Hz – 20kHz (±3dB)
- Frequency Range
- 43Hz – 20kHz (-10dB)
- Low Frequency Extension
- 43Hz (-10dB)
- Maximum Continuous SPL
- 94dB
- Maximum Peak SPL
- 108dB
- Maximum Peak Input Level
- +6dBV / +20.3dBu (-10dBV / +4dBu)
- System Distortion Criteria
- <10% THD at maximum output with full compressor / limiter engagement
- Electrical Distortion Criteria
- 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
- Signal to Noise Ratio
- 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
- Coverage Pattern
- 120° x 90° (horizontal x vertical)

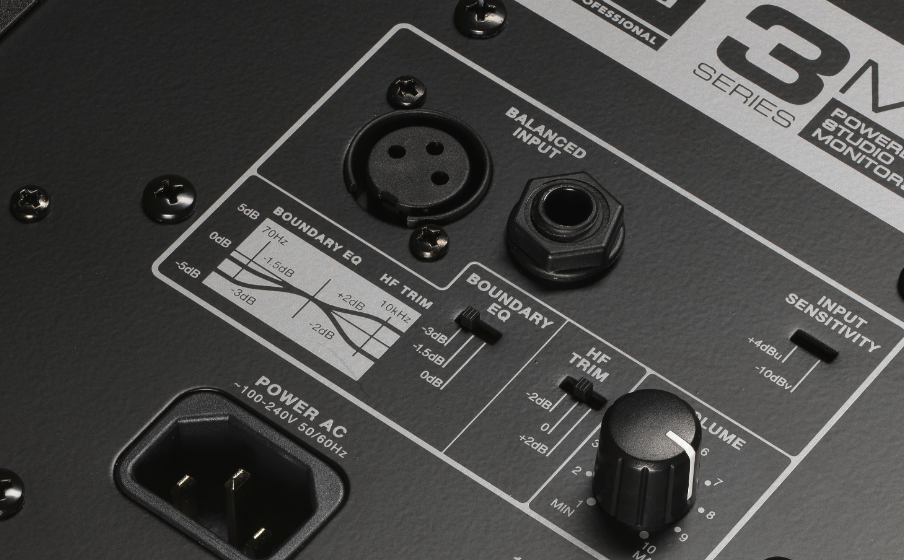

- HF Trim Control
- -2dB, 0dB, +2dB
- Boundary EQ
- LF Shelf @ 50Hz
- AC Input Voltage
- 100 – 240VAC (±10%), 50 / 60Hz
